C-Band RF front end receiver

RF front end unit comprises of two receiver sections, a transmit section and power supply cum monitor & control (M&C) board. In receiver Section 1, the input signal from either the SUM port of an external directional antenna or an omni antenna is selected using SPDT switch, band pass filtered and then suitably amplified using a low noise amplifier and passed through a micro strip directional coupler. In receiver section 2, the signal from the DIFF port of the directional antenna is band pass filtered, amplified and then Bi phase modulated in a mixer using a square wave reference signal. In the transmit section, the unit couples the transmit signal to the SUM port of directional antenna or omni antenna through a circulator.

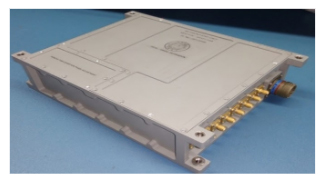

C-Band RF Front End Receiver

C-Band RF front end receiver Features

Features

  • Operates in C-Band
  • Two receiver sections, a transmit section
  • One receiver for sum port
  • Second receiver for delta port / difference port
  • Bi- phase modulation
  • Phase trimmer to compensate phase imbalance between the SUM and DIFFERENCE paths
  • MIL-STD-810G
  • MIL-STD-461E
C-Band RF front end receiver Specifications
C-Band RF front end receiver Specifications
Frequency band 4400 MHz - 4600 MHz
Tuning Step Size 20 MHz
No. RF inputs Two
Max. Input Power -40 dBm
Receiver Noise Figure ≤ 3.5 dB
Sensitivity -110 dBm
Dynamic Range 70 dB
Error Voltage Up to ±7 VDC
Power Rating 20 Watts CW
Switch Typee SPDT
Power Supply 28 VDC nominal
Operating Temp -40 ºC to +55 ºC
